WORM DRIVE CLAMPS |
|
|
|

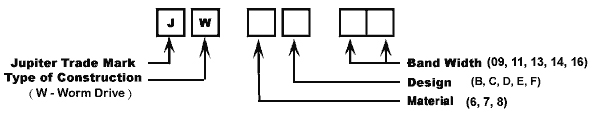

In order to differentiate the applications / designs, Jupiter clamps generally have their own identification type codes - |
|
![](images/Identification_Code_Nos.jpg) |
|
![](images/quote.jpg) |
|
Type JW 6 B : All Stainless Steel Clamps |
|
|
![Stainless Steel Clamps](images/Stainless_Steel_Clamps_Type_JW_6_B.jpg) |
For normal environmental or Water contamination applications, AISI 201/202 material is used. |
|
|
|
Type JW 7 B : All Stainless Steel Clamps |
|
|
![Stainless Steel Clamp](images/Stainless_Steel_Clamps_Type_JW_7_B.jpg) |
These are high strength clamps for general Salt Water or chemical applications made out of AISI 304 material. |
|
|
|
Type JW 8 B : Acid Proof Clamps |
|
|
![Acid Proof Clamps](images/Acid_proof_Clamps_Type_JW_8_B.jpg) |
This is special type with use of AISI 316 for high corrosion resistance as Acid - Proof applications. |
|
|
|
Type JW C : Clamps with underlap |
|
|
![Clamps with underlap](images/Clamps_with_underlap.jpg) |
For more protection of hose, underlap beneath the band threads is provided on demand. |
|
|
|
Type JW D : Constant Torque Clamps |
|
|
![Constant Torque Clamps](images/Constant_Torque_Clamps.jpg) |
These types are more vibration-proof under severe conditions. They also withstand for Hot and Cold climatic fluctuations by automatic self adjustment of clamp dia as the nature demands. |
|
|
|
Type JW E : Snap Action Clamps |
|
|
![Snap Action Clamps](images/Snap_Action_Clamps.jpg) |
These are snap action clamps specially developed for applications when frequent or periodical re-opening is required. They are generally long ranged clamps to facilitate quick easy mounting for variable application sizes. |
|
|
|
Special Type : Worm Drive V Clamps |
|
|
![Worm Drive V Clamps](images/Worm_Drive_V_Clamps.jpg) |
These clamps are used for light connections of V-type jointing of flanged pipes for peculiar requirements. |
|
|
|
Type JW F : Worm Drive Thumb Screw Clamp |
|
|
![Worm Drive Thumb Screw Clamp](images/Worm_Drive_Thumb_Screw_clamp.jpg) |
Clamps with built-in Screw flap is provided if required for quick closing & opening operations without tool. |
|
|
|
|
|
