V Band Coupling Clamps |
| |
|
| |
| Input Data - Selection Guide |
| |
| What User has to provide is the complete input data vide requirement of Jupiter Questionnaire and / or the general dimensions in the range indicated below. This starts the Jupiter's Design and development process for user's fail-proof and dependable V-Band Coupling Joint and dependable V- Band coupling Joint. |
| |

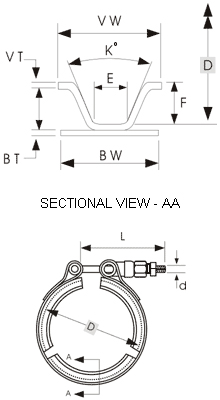

| General Specifications : |
| |
| Item of Specification |
The Developed Specifications vary |
| from (mm) |
Upto (mm) |
| D |
Clamp Dia |
50 |
400 or more |
| BW |
Band Width |
12.7 |
32 |
| BT |
Band Thickness |
0.6 |
2 |
| VW |
Vee Width |
12.7 |
35 |
| VT |
Vee Thickness |
0.65 |
2.5 |
| K° |
Included Angle |
30 |
60 |
| d |
Dia of T-Bolt |
6.35 |
10 |
| L |
Length of T-Bolt |
55 |
115 |
| |
Other Miscellaneous feedbacks |
Please fill in Jupiter Questionnaire for design input and provide data as much complete as possible |
|
 |
|
